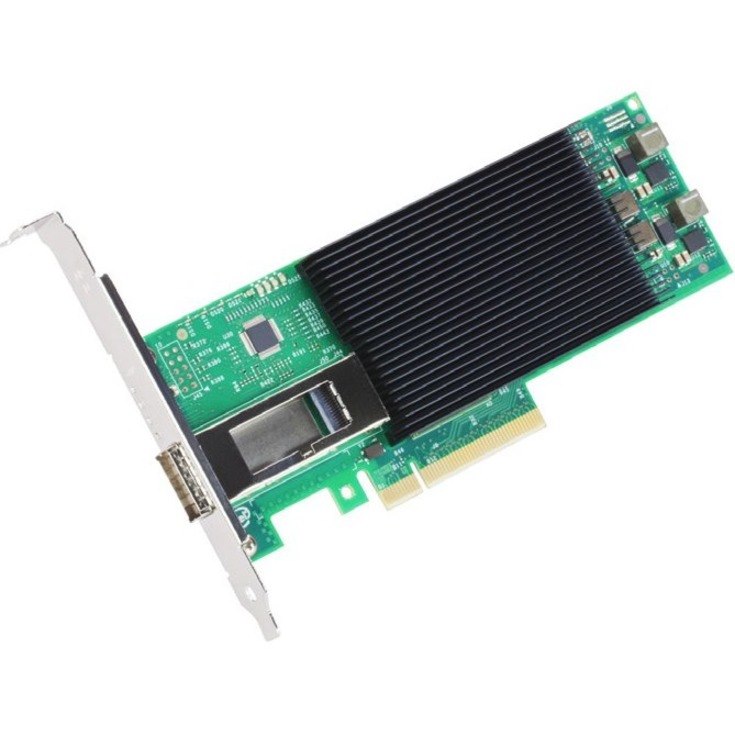

The best-selling Intel X520 dual-port (2x10GbE) adapter is known for its high performance, low latency, reliability, and flexibility. The addition of a new low profile QSFP+ 4x10GbE adapter to the X520 family delivers all of the capabilities in a 4x10GbE adapter. The Intel® Ethernet Converged Network Adapter X520- QDA1 adapter delivers a proven, reliable solution for deployments of high density Ethernet for unified 10GbE network connections. The new single-port QSFP+ adapter delivers 4 channels of line-rate 10Gb Ethernet in a single PCIe slot using the latest PCI Express* (PCIe*) v3.0 bus technology for maximum bandwidth that addresses the increasing capability of the latest Intel® Xeon® processor E5/E7 based platforms.
- General Information
- Manufacturer
- Intel Corporation
- Manufacturer Website Address
- http://www.intel.com.au
- Brand Name
- Intel
- Product Series
- X520
- Product Type
- 40Gigabit Ethernet Card
- Interfaces/Ports
- Host Interface
- PCI Express x8
- Network (RJ-45)
- No
- USB
- No
- Serial Port
- No
- Ethernet AUI
- No
- XJACK
- No
- PoE (RJ-45) Port
- No
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- QSFP+
- Media & Performance
- Media Type Supported

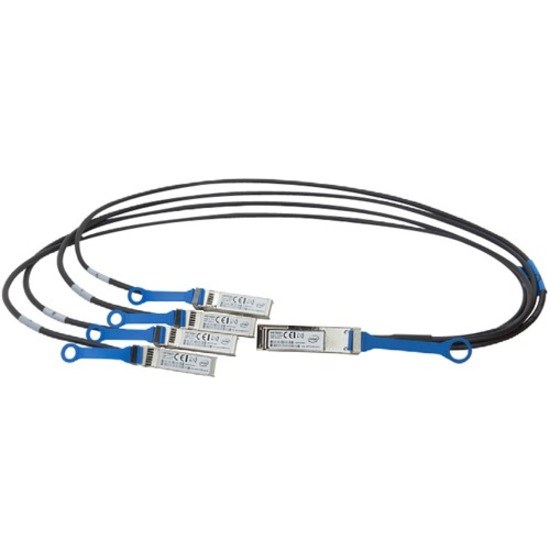

- Twinaxial
- Network & Communication
- Network Technology
- 40GBase-X
- Physical Characteristics
- Card Height
- Full-height
- Low-profile
- Form Factor
- Plug-in Card
- Width
- 68.7 mm
- Depth
- 169.3 mm
- Miscellaneous
- Device Supported
- Server
- Platform Supported
- PC
