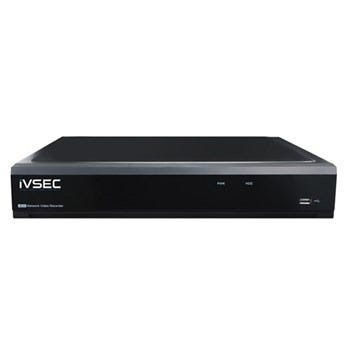

The IVSEC NR004XA NVR is a compact, yet powerful 4-channel PoE network video recorder designed for seamless recording and monitoring in small to medium-scale security setups. It supports up to 4 IP cameras and features a single HDD bay with a massive 16TB storage potential, ensuring you can retain crucial footage for extended periods. The built-in PoE feature simplifies installation by providing both power and data to cameras via a single Ethernet cable, significantly reducing complexity and setup time. The NVR also includes advanced intelligent video features (IVS) like perimeter intrusion and line crossing detection, offering more precise and efficient camera management and surveillance.

The NR004XA is equipped with powerful H.264 and H.265 compression technologies, which help save on hard drive storage without compromising video quality. Its plug-and-play functionality with IVSEC X range cameras makes for a quick and easy setup, while ONVIF Profile S/G/T compatibility ensures a broad range of third-party IP cameras can be integrated. With multiple search methods, including event-triggered and time-lapse searches, finding specific footage is streamlined and efficient. For remote access and control, the NVR can be managed via a free Video Management System (VMS) for PCs and a powerful mobile application, providing peace of mind and flexibility.

To download the IVSEC X app and access support resources, please visit the IVSEC support page.

FEATURES

• 4-channel PoE NVR supporting up to 4 IP cameras
• Plug and Play with IVSEC X range cameras for easy setup
• ONVIF Profile S/G/T for broad third-party IP camera compatibility
• Powerful H.264, H.264+, H.265, H.265+, and MJPEG video compression to save on storage
• Supports a single HDD up to 16TB for extended footage retention
• Intelligent Video Surveillance (IVS) features including motion detection, perimeter intrusion, line crossing, face recognition, and human/vehicle detection (camera dependent)
• Multiple search methods including continuous, scheduling, event-triggered, and IVS filtering
• Remote access and control via free VMS for PCs and a mobile app
• Two-way audio streaming
• Compact and lightweight design (0.70kg net weight)

SPECIFICATIONS

• Maximum Channels: 4
• Maximum Video Resolution: 8MP
• Video Compression: H.264, H.264+, H.265, H.265+, MJPEG
• Video Output Resolution: 4K, HD-1080p, HD-720p, 1.3MP, D1, VGA
• Total Storage Potential: 16TB
• HDD Bays: 1, up to 16TB per HDD
• Non-PoE Ports: 1
• PoE Ports: 4
• Power Supply: DC 48V, 1.2A
• Power Consumption: 5W (without HDD)
• Connectors: 1x 3.5" SATA HDD slot, 2x USB2 Female, 1x Gigabit Ethernet RJ-45, 8x PoE+ ports, HDMI, VGA, Audio in/out, Power Jack input, On/off switch
• Operating Environment: 5°C to 40°C, 20%-80% RH humidity
• Product Dimensions: 53mm x 300mm x 227mm
• Weight (Net): 0.70kg
• In The Box: Quick installation guide, Mouse, HDD screws, Power supply

IVSEC products are designed to work together to form a comprehensive security system that can be integrated with Control4 smart home systems. For the full list of features and the most current technical specifications, you can download the necessary drivers and view the installation guide here.

WARRANTY

2 Years Parts
