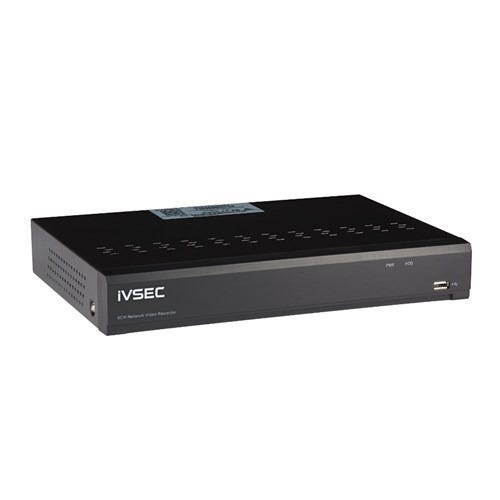

The IVSEC NR308XC is a robust 8-channel Network Video Recorder (NVR) designed for reliable video surveillance. It supports up to a 12MP maximum video resolution with a 128Mbps bandwidth, ensuring high-quality, clear video streaming. With a single HDD bay that can accommodate up to a 16TB hard drive, this NVR provides substantial storage for extensive footage retention. It's built with 8 Power over Ethernet (PoE) ports for easy plug-and-play installation with IVSEC X range cameras and is also ONVIF compatible for third-party camera integration.
This NVR features advanced H.264+ and H.265+ video compression technology, which significantly reduces the amount of storage space needed without compromising video quality. This allows for longer recording periods on the same hard drive. The system also includes a variety of intelligent video analytics features, such as perimeter intrusion, face recognition, and human and vehicle detection, which are dependent on the connected camera. These intelligent features help streamline security monitoring and alert you to specific events.
The NR308XC offers multiple search methods to quickly find specific footage, including event-triggered searching by IVS filtering, snapshot searching, and a general timeline search. For remote access and management, it supports a free Video Management System (VMS) for PCs and a powerful mobile app, "IVSEC X". The NVR also supports two-way audio streaming and includes both HDMI and VGA video outputs for local monitoring.
To download the IVSEC X app and access support resources, please visit the IVSEC support page.
FEATURES
- 8 Channels
- Maximum 12MP video resolution support
- 128Mbps bandwidth for smooth video streaming
- Intelligent video analytics (camera dependant) including Perimeter Intrusion, Face Recognition, and Human & Vehicle Detection
- Advanced H.264+ and H.265+ compression to save storage space
- Plug-and-play with IVSEC X range cameras
- ONVIF Profile S/G/T for third-party camera compatibility
- Multiple search methods including event-triggered and snapshot searching
- Two-way audio streaming
- Remote access via free VMS for PCs and "IVSEC X" mobile app
SPECIFICATIONS
- Maximum Channels: 8
- Maximum Video Resolution: 12MP
- Bandwidth: 128Mbps
- Video Compression: H.264, H.264+, H.265, H.265+, MJPEG
- Video Output Resolution: 4K, HD-1080p, HD-720p, 1.3MP, D1, VGA
- Storage Potential: Up to 16TB
- HDD Bays: 1 x 3.5" SATA HDD slot (up to 16TB)
- PoE Ports: 8 ePoE ports
- Power Supply: DC 48V, 2A
- Power Consumption: 5W (without HDD)
- Operating Environment: 0°C to 40°C, 20%-80% RH
- Net Weight: 1.70kg
- Gross Weight: 2.00kg
IVSEC products are designed to work together to form a comprehensive security system that can be integrated with Control4 smart home systems. For the full list of features and the most current technical specifications, you can download the necessary drivers and view the installation guide here.
WARRANTY
2 Years Parts
