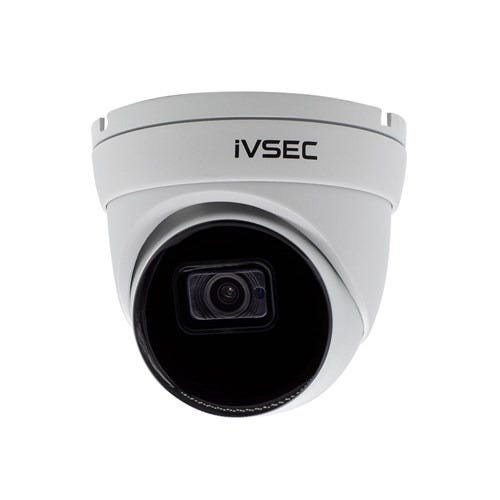

The IVSEC NC340XA is a cutting-edge turret-style security camera designed for robust surveillance needs. Featuring a 1/2.3" Progressive CMOS image sensor, this camera delivers a stunning maximum video resolution of 12 megapixels, providing crisp and detailed footage. Its 3.6mm fixed lens ensures a wide horizontal field of view of 87°, making it ideal for covering large areas with a single camera.

Built to withstand the elements, the NC340XA is suitable for outdoor use with a durable, vandal-resistant design and an IP67 weatherproof rating. It supports a maximum night IR distance of 30 metres, ensuring clear and reliable monitoring around the clock. Advanced video compression, including H.265+, optimises storage and bandwidth without compromising video quality.

This smart camera comes equipped with a suite of Intelligent Video (IVS) features to enhance security. These include Perimeter Intrusion Detection, Line Crossing Detection, and Human and Vehicle Detection, allowing you to set up custom alerts and focus on what matters most. With a built-in microphone, the camera also supports audio streaming, providing an additional layer of security surveillance.

The NC340XA is easily powered via Power over Ethernet (PoE), simplifying installation by using a single cable for both power and data. Edge recording capabilities via a microSD/SDHC card slot provide local storage redundancy. The camera supports multiple streams and a wide range of protocols, ensuring seamless integration into new or existing security systems.

To download the IVSEC X app and access support resources, please visit the IVSEC support page.

FEATURES

• 12-megapixel resolution for detailed video footage
• 3.6mm fixed lens with an 87° horizontal field of view
• Vandal-resistant and IP67 weatherproof rating for outdoor use
• Night vision with a maximum IR distance of 30 metres
• Intelligent Video (IVS) features, including Human and Vehicle Detection and Line Crossing Detection
• Built-in microphone for audio streaming
• Supports multiple video compression formats, including H.265+, H.265, H.264+, and H.264
• Power over Ethernet (PoE) support for simplified installation
• Edge recording via microSD/SDHC card slot

SPECIFICATIONS

• Camera Type: Turret
• Image Sensor: 1/2.3" Progressive CMOS
• Maximum Video Resolution: 12 megapixels (4096x3072)
• Maximum FPS: 15
• Lens: 3.6mm fixed (H.FOV: 87°)
• Maximum Night IR Distance: 30m
• Vandal Resistant: Yes
• IP Rating: IP67
• Power: PoE (IEEE 802.3af), DC12V
• Power Consumption: <7W
• Operating Environment: -30~+55°C / less than ≤ 95% RH
• Dimensions: 100mm x 100mm x 100mm
• Net Weight: 0.50kg
• In The Box: Camera, quick user guide, installation template, mounting screws and plugs

IVSEC INTEGRATION

IVSEC products are designed to work together to form a comprehensive security system that can be integrated with Control4 smart home systems. For the full list of features and the most current technical specifications, you can download the necessary drivers and view the installation guide here.

WARRANTY

3 Year Warranty
