- General Information
- Manufacturer
- Samsung
- Manufacturer Website Address
- http://www.samsung.com/au
- Brand Name
- Samsung
- Product Series
- TSn
- Marketing Information

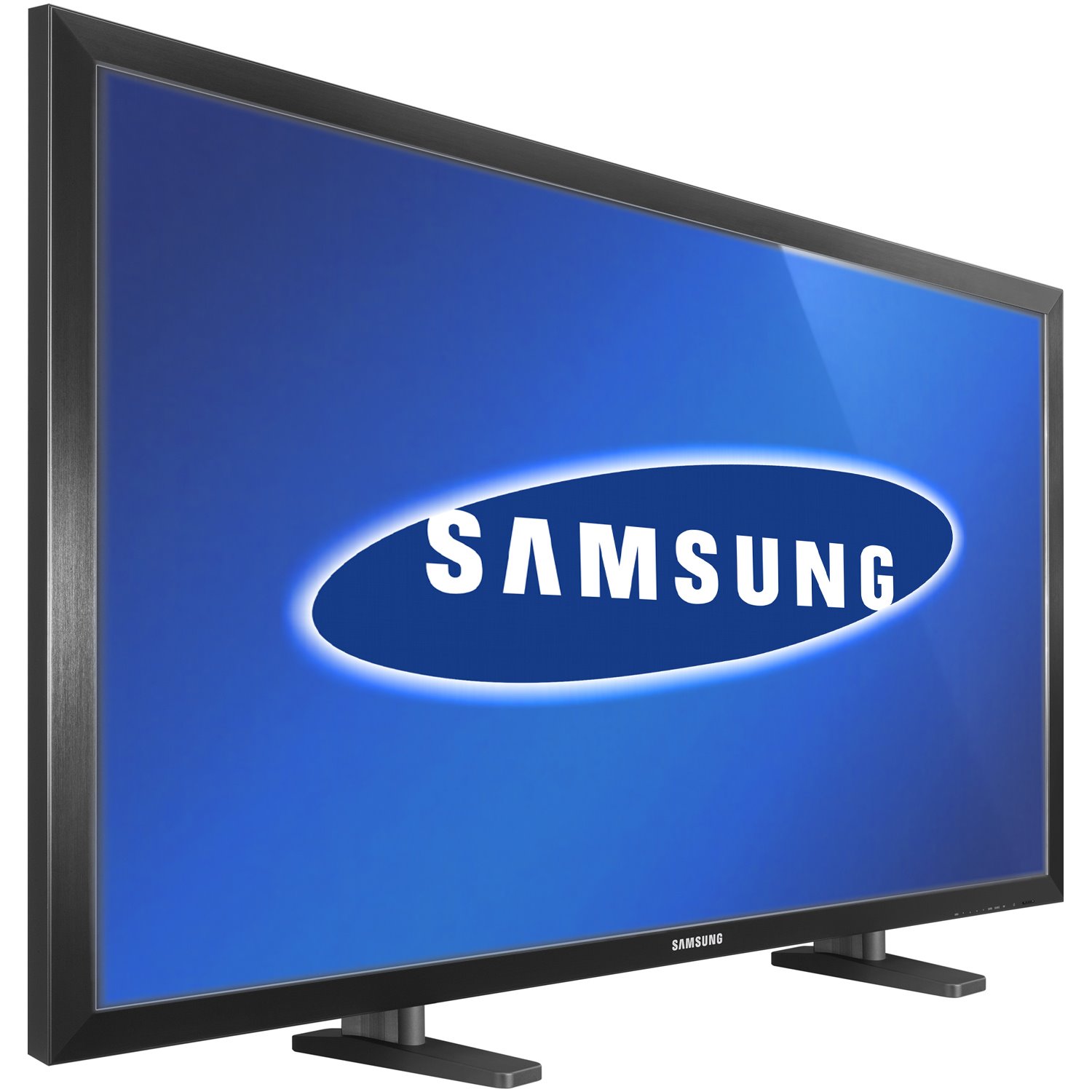

The Samsung 70" 700TSn-2 LCD Touch Screen display features fast, accurate touch-sensitive infrared (IR) technology. With a fast screen response time, users can get the information they need with just the touch of a finger. The touch-sensitive displays are protected by a sheet of protective glass, so your touch screen display will deliver information for years to come. Full HD 1920 x 1080 p resolution allows you to display the highest resolution content. And scheduling and controlling content is made simple with the built-in PC and proprietary MagicInfo Pro software.
- Product Type
- Digital Signage Display
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Features
- Temperature Sensor
- Plug and Play
- Picture in Picture
- Video Wall
- Pivot Display
- Button Lock
- Anti-retention
- Brightness Sensor
- Processor & Chipset
- Processor Type
- Athlon X2
- Processor Model
- 4450e
- Processor Speed
- 2.30 GHz
- Memory
- Standard Memory
- 1 GB
- Memory Technology
- DDR2 SDRAM
- Storage
- Solid State Drive Capacity
- 32 GB
- Display & Graphics
- Viewable Screen Size
- 70"
- Display Screen Type
- LCD
- Touchscreen
- Yes
- Touchscreen Technology
- Infrared (IrDA)
- Display Resolution
- 1920 x 1080
- Response Time
- 8 ms
- Aspect Ratio
- 16:9
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Audio
- Number of Speakers
- 2
- Speakers
- Yes
- RMS Output Power
- 20 W
- Video
- Scan Format
- 1080p
- Standard Refresh Rate
- 85 Hz
- Dynamic Contrast Ratio
- 2,500:1
- Native Contrast Ratio
- 2,000:1
- Brightness
- 600 cd/m²
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- USB
- Yes
- DVI
- Yes
- VGA
- Yes
- HDMI
- Yes
- Component Video
- Yes
- Composite Video
- Yes
- Network (RJ-45)
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Serial
- Yes
- Software
- Operating System
- Windows XP Embedded
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Physical Characteristics
- VESA Mount Compatible
- Yes
- Height
- 98.9 cm
- Width
- 168.8 cm
- Depth
- 15.4 cm
- Weight (Approximate)
- 122 kg
- Miscellaneous
- Additional Information
- Display Colours: 16.7 Million
Power Consumption:
- On Mode: 790 W (Max) / 750 W (Typ)
- Sleep Mode: Less than 5 W
- Off Mode: Less than 5 W
- Certifications & Standards
Safety:
- UL 60950-1
- CSA: CSA C22.2 No. 60950-1
- TUV: EN60950-1
- NEMKO: EN60950-1
- KC: K60950-1
- CCC: GB 4943-2001
- PSB: IEC60950-1
- GOST: IEC60950-1, EN55022
- SIQ: IEC60950-1, EN55022
- PCBC: IEC60590-1, EN55022
- NOM: NOM-019-SCFI-1993
- IRAM: IEC60950-1
- SASO: IEC60950-1
EMC:
- FCC Part 15, Subpart B class
- BCE: EN55022, EN55024
- VCCI: V-3 (CISPR22)
- KCC: KN22, KN24
- BSMI: CNS13438 (CISPR22)
- C-Tick: AS / NZS3548 (CISPR22)
- CCC: GB 9254-2008, GB 17625.1-2003
